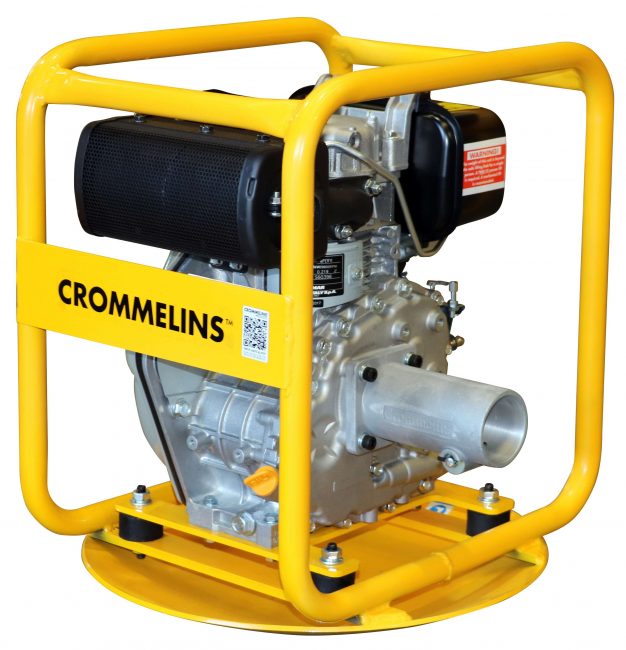

Diesel drive unit assembled and tested in Australia.
This drive unit diesel 4.7hp will drive submersible flexible drive pumps and concrete vibrators using its universal 3-dog style driveshaft. It is ideal for construction jobs on mine sites to power a wide range of flexible shaft equipment.
Features include an Australian fabricated heavy-duty steel roll frame with sledge-style base for use on any surface. Quick action couplings allow for easy connections. It also features a rubber-mounted sub-frame to reduce vibration from the engine and shaft. Powered by a reliable Yanmar diesel engine.
Customisation options include; electric start, hire-pack and also mine specification. There is also a range of 28 to 60mm shafts available as well as extension shafts and pumps.
Assembled and tested in Australia. The drive unit comes with a two-year manufacturer’s warranty. It is confidently backed with Service Agents covering every part of Australia.
|Drives Vibrators (Up to)||65mm|
|Drive Pumps (Up to)||50mm|
|Starting System||Recoil Start|
|db @ 7m||94db at 1m|
|Manufacturers Warranty||2 Years|
- Drives 2” Flexible drive submersible pumps (FP2T & FP2TA)
- Drives vibrator Shafts
- A rubber-mounted sub-frame between the engine and HD frame to ensure reduced vibration
- Sledge mounted frame which enables usage on any surface
- Full heavy-duty protective roll frame
- Assembled and tested in Australia
- 2 Years manufacturer’s warranty
- Hire and Rental
- Power source to drive flex pumps
- Power source to drive concrete vibrator shafts
- Hire and rental
